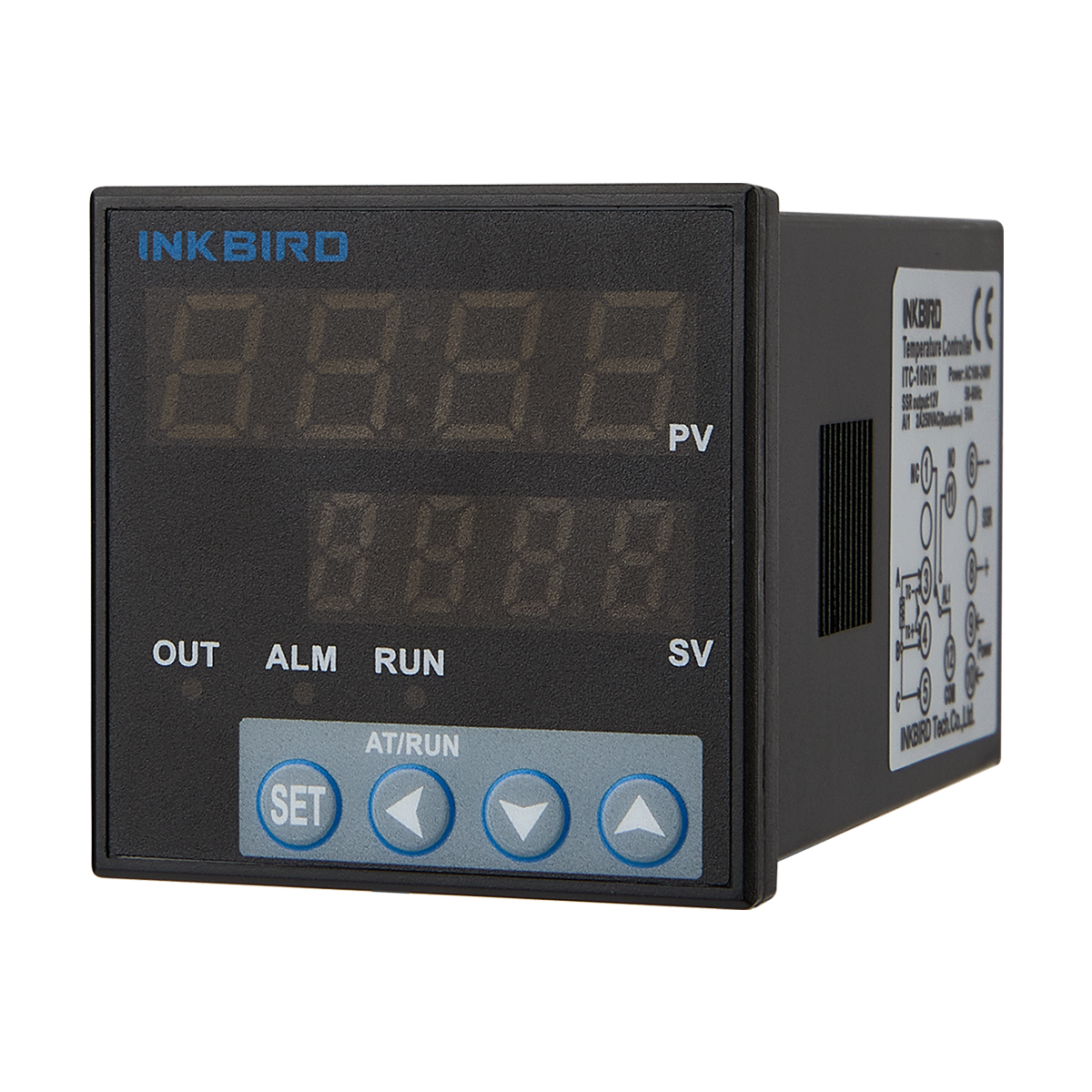

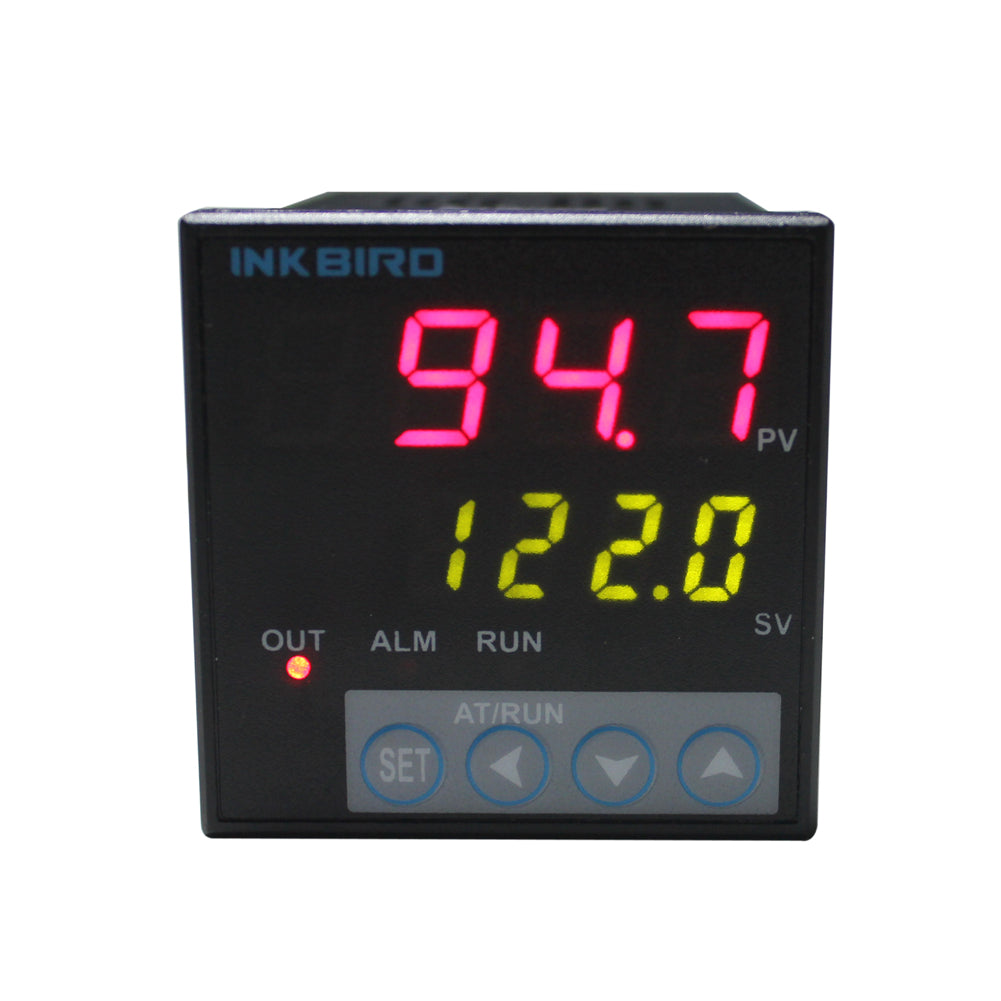

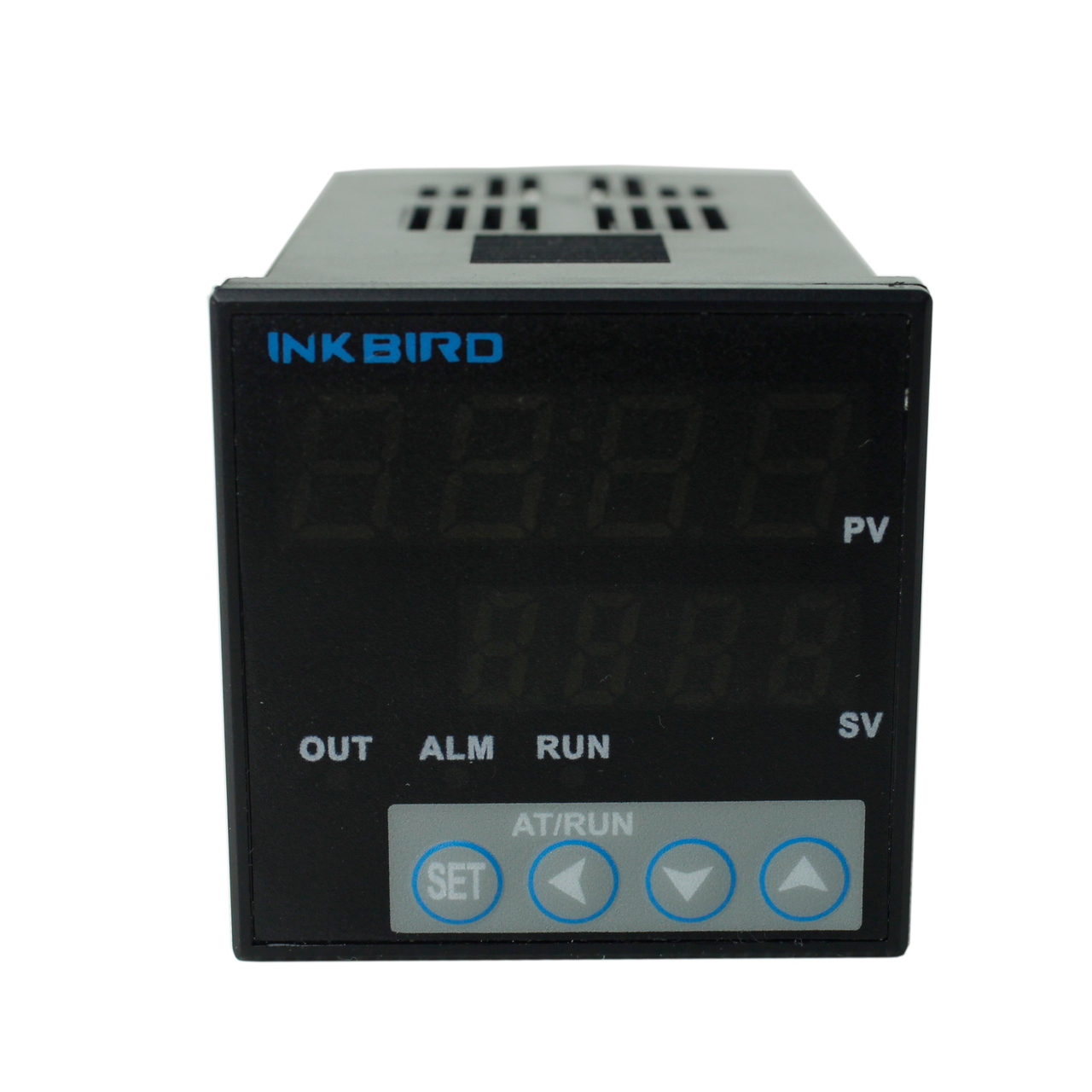

PID Temperature Controllers ITC-106

Available models:

• ITC-106VH --- One SSR output + One Relay Alarm Output; AC100-240V.
• ITC-106RH --- One Relay output + One Relay Alarm Output; AC100-240V.

Main Features:

• Front Panel Dimension: DIN (48WmmX48Lmm), Cutout size: 45x45mm
• Support Multiple Thermocouples and Resistance Sensors (K, S, Wre, T, E, J, B, N, CU50, PT100)
• Power Supply Voltage: AC 100-240V ±10% 50/60Hz
• Main Output： Voltage Pulses Output (ITC-106VH): DC 12V, 30mA;
• Main Output： Relay Contact Output (ITC-106RH): AC250V 3A (Resistive load) ON/NC.
• Alarm 1 AC250V 3A (Resistive load) ON/NC
• High Accuracy of Displaying and Controlling 0.1ºC, Accuracy of Measurement ±0.2%FS
• PID and ON/OFF Control Mode, High Standard Self-adjusting Function
• Multiple Outputs and Alarm Modes
• Build-in Adjustable Digital Filter Reduce Interference
• The Self-adjusting Function and Intelligent Control of the Instrument Ensure the Long-term Stability
• High Luminance, 0.39” height LED display, Anti-glare panel
• Built-in Switch Power Supply, Wide Voltage Range and Low-power Consumption.
